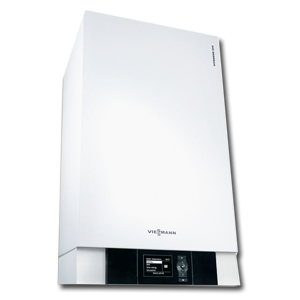

Vitodens 200 B2HA Gas Boiler
Equipped with the industrys first intelligent combustion management system and intuitive control technology, the new generation Vitodens 200-W, B2HA gas-fired wall-mount condensing boiler delivers unparalleled performance, reliability and comfort.
- Lasting performance with industry-leading Viessmann made SA240 316 Ti stainless steel Inox-Radial heat exchanger
- Low-emission combustion with Viessmann made stainless steel MatriX cylinder burner
- Wide modulation range up to 6.5:1 to precisely match load conditions.
- Fast installation and reduced maintenance with Lambda Pro, industry-first intelligent combustion management system. Adjusts automatically to gas type and quality. No fuel conversion kit required.
- On-board Vitotronic control features large display with text and graphics for straightforward, menu-driven programming and operation.
- Outdoor reset boiler and system control for multi-temperature space and DHW heating.
- Greater venting flexibility with increased vent length (up to 180 ft) and multiple venting options.
- Compact, lightweight design and zero clearance to combustibles.
- Extremely quiet operation; quieter than most refrigerators.
| MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions
HxWxD | Water Content
Gal. | Weight
Lbs. |
|---|
| B2HA 19 | 12.0 | 10.8 | 93.3 | 41x17.75x14 | 0.87 | 101 |
| B2HA 28 | 19.0 | 17.4 | 93.3 | 41x17.75x14 | 0.87 | 106 |
| B2HA 35 | 19.0 | 17.4 | 93.3 | 41x17.75x14 | 0.87 | 106 |
| B2HA 45 | 60.0 | 55.0 | 92.0 | 40.6x19x15 | 1.90 | 155 |
| B2HA 60 | 60.0 | 55.0 | 92.0 | 40.6x19x15 | 1.90 | 155 |
| B2HA 80 | 104.0 | 95.0 | 92.0 | 43.5x19x15 | 3.40 | 194 |
| B2HA 100 | 104.0 | 98.0 | 94.5 | 43.5x49x21 | 3.40 | 194 |
| B2HA 112 | 113.0 | 103.0 | 93.9 | 44.5x23.6x27.1 | 4.00 | 298 |
| B2HA 150 | 113.0 | 103.0 | 93.5 | 44.5x23.6x27.1 | 4.00 | 298 |
Warranty Information
- All Parts
for 24 months -
- Heat Exchanger - Limited Lifetime
Available Documents
67-9104.pdf (Consumer Literature, Customer Information, Color)
(Cut Sheet, Consumer Literature, Customer Information)
