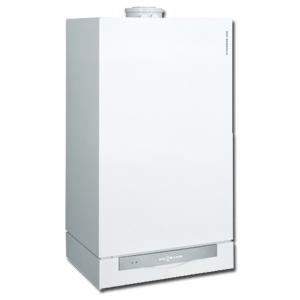

Vitodens 200-W WB2B Wall Mounted Condensing Boilers
Equipped with the industrys first intelligent combustion management system and powerful control technology, the new generation Vitodens 200-W gas-fired wall-mount condensing boiler delivers unparalleled performance, reliability and comfort.
- Lasting performance with industry-leading Viessmann made SA240 316 Ti stainless steel Inox-Radial heat exchanger
- Low-emission combustion with Viessmann made stainless steel MatriX cylinder burner for natural gas or propane. Factory calibrated.
- Fast installation and reduced maintenance with Lambda Pro, industry-first intelligent combustion management system. Adjusts automatically to gas type and quality. No fuel conversion kit required.
- Powerful and user-friendly Viessmann Vitotronic on-board multifunction outdoor reset boiler and system control for multi-temperature space and DHW heating.
- Greater venting flexibility with increased vent length (up to 180’) and multiple venting options.
- Compact, lightweight design and zero clearance to combustibles.
- Extremely quiet operation; quieter than most refrigerators.
- True high-altitude operation up to 10,000 ft / 3,000 m with simple electronic adjustment.
MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. |
---|
WB2B-19 | 31.0 | 28.0 | 96.1 | 33.5x17.75x14 | 0.87 | 102 |
WB2B-26 | 31.0 | 28.0 | 96.1 | 33.5x17.75x14 | 0.87 | 102 |
WB2B-35 | 31.0 | 28.0 | 96.1 | 33.5x17.75x14 | 0.87 | 102 |
WB2B-45 | 60.0 | 55.0 | 96.1 | 33.5x19x15 | 1.90 | 155 |
WB2B-60 | 60.0 | 55.0 | 96.1 | 33.5x19x15 | 1.90 | 115 |
WB2B-80 | 104.0 | 95.0 | 96.1 | 33.5x19x21 | 3.40 | 225 |
WB2B-105 | 104.0 | 98.0 | 94.5 | 33.2x19x21 | 3.40 | 225 |
Warranty Information
- All Parts
for 24 months -
- Heat Exchanger - Limited Lifetime
Available Documents
67-9104.pdf (Consumer Literature, Customer Information, Color)
67-9130.pdf (Flyer, Consumer Literature, Customer Information)
