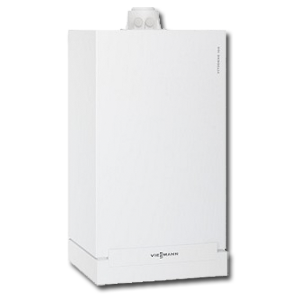

Vitidens 100-W Gas Boiler
The Vitodens 100-W gas-fired wall-mount condensing boiler is ideal for any home and any budget. With added product features, the new generation of this popular boiler now offers even greater versatility and choice
- On-demand DHW now on Vitodens 100 with the new CombiPLUS Kit
- Lasting Performance with industry-leading Viessmann made SA240 316 Ti stainless steel Inox-Radial heat exchanger
- Low-Emission Combustion with Viessmann made stainless steel MatriX cylinder burner
- Versatile On-Board Boiler Control interfaces with most external controls.
- Outdoor temperature sensor standard.
- Greater Venting Flexibility with increased vent length (up to 200’) and multiple venting options
- Extremely Quiet Operation; quieter than most refrigerators.
- Compact, Lightweight Design and zero clearance to combustibles.
- Built-in Automatic Frost Protection prevents freeze-up during long shut-off periods.
| MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions
HxWxD | Water Content
Gal. | Weight
Lbs. |
|---|
| WB1B 26 | 37.0 | 34.0 | 94.0 | 28.5x15.75x14.1 | 0.87 | 78 |
| WB1B 35 | 37.0 | 34.0 | 94.0 | 28.5x15.75x14.1 | 0.87 | 78 |
Warranty Information
- All Parts
for 24 months -
- Heat Exchanger - Limited Lifetime
Available Documents
67-9104.pdf (Consumer Literature, Customer Information, Color)
(Specification Sheet, Technical Information)
