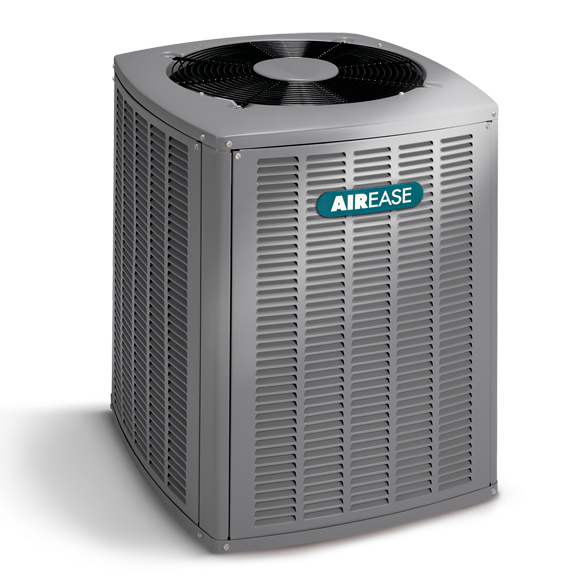

4SHP14LE Single Stage Split Heat Pumps
You don’t build an 80-year history without having strong products and an even stronger commitment to excellence. The AirEase® 4SHP14LE is the perfect example of what happens when you set out to exceed expectations.
- MHT™ Technology AirEase’s proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant flow' while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and efficiency.
- Quiet Shift™ Technology Allows heat pumps to enter defrost mode without excessive noise. Since refrigerant pressure is allowed to equalize before the switch' the heat pump can dissipate performance-robbing frost and ice quietly
- Sound Reduction Inside every 4SHP14LE' you’ll find a compressor that’s wrapped in a heavy-duty' sound-insulating blanket to reduce operating noise' so you’ll enjoy peace and quiet with your comfort.
- Integrated Compressor Protection High- and low-pressure switches give additional reliability to each AirEase heat pump. The highpressure switch prevents operation if refrigerant pressures exceed safe levels' protecting the compressor. If your unit does not have enough refrigerant' the low-pressure switch prevents the unit from drawing in moisture and other contaminants while operating.
- Single-Stage Scroll Compressor A time-proven design chosen for its consistent performance' incredible durability and long operating life' the single-stage scroll compressor works hard year after year.
- Microban® Protection On Matched AirEase Indoor Coil. Drain pans are infused with an antimicrobial agent that destabilizes the membrane of microorganism cells' disrupting the cellular function of odor-causing mold and bacteria so they can no longer grow or reproduce.
|MODEL||Cooling Cap. MBtuH||SEER||Heating Cap.MBtuH||HSPF||Refrigerant Charge Oz.||Line Size||Dimensions HxWxD||Weight Lbs.|
|4SHP14LE118P||18.0 ||14.0 ||17.0 ||8.2 ||93 ||3/8-3/4 ||29.25x31.25x37.75 ||175 |
|4SHP14LE124P||23.4 ||14.0 ||21.6 ||8.2 ||94 ||3/8-3/4 ||29.25x31.25x37.75 ||177 |
|4SHP14LE130P||28.0 ||14.0 ||25.0 ||8.2 ||90 ||3/8-3/4 ||29.25x31.25x37.75 ||178 |
|4SHP14LE136P||34.0 ||14.0 ||33.8 ||8.2 ||150 ||3/8-7/8 ||29.25x31.25x33.75 ||202 |
|4SHP14LE142P||41.0 ||14.0 ||40.0 ||8.2 ||184 ||3/8-7/8 ||35.75x37.75x37.75 ||272 |
|4SHP14LE148P||47.0 ||14.0 ||46.0 ||8.2 ||161 ||3/8-7/8 ||35.75x37.75x37.75 ||273 |
|4SHP14LE160P||57.0 ||14.0 ||55.0 ||8.2 ||197 ||3/8-7/8 ||35.75x37.75x43.75 ||297 |290-11816.pdf
- All Parts
for 120 months - With prompt online registration
- Compressor for 120 months -
(Specification Sheet, Technical Information)
